Introducing Our Latest Innovation In Medical Technology
In the world of electrotherapy, the M101A - WH2 stands out as a powerful and user - friendly device with its powerful 4 channels output functions. This product is designed to offer effective treatment solutions for various conditions.
| product model | M101A-WH2 | Electrode pads | 40x40mm, square | Feature | 4 Channel output and be controled individually |
| Modes | TENS+EMS+MASSAGE | Battery | 3.7 V Li-ion battery | Dimension |
142 (L) x 64 (W) x 15.5 (H)
|
| Programs | 39 | Treatment output | Max.60mA | Carton Weight | 20KG |
| Channel | 4 | Treatment intensity | 20 | Carton Dimension | 420*400*400mm（L*W*T） |
Powerful 4 - Channel Output
The 4 - channel output of the M101A - WH2 is a remarkable feature. It allows for highly customized treatment regimens. Users can apply different treatment intensities and programs to four separate areas simultaneously. For example, in a rehabilitation scenario, one channel could be set to a specific TENS program for pain relief on the lower back, while another channel is configured with an EMS program for muscle stimulation on the thigh. This flexibility enables comprehensive treatment of multiple body parts or different muscle groups at once, enhancing the overall effectiveness of the therapy. The device can precisely target and address various conditions in different regions of the body, providing a more efficient and tailored treatment experience compared to single - channel or dual - channel devices.

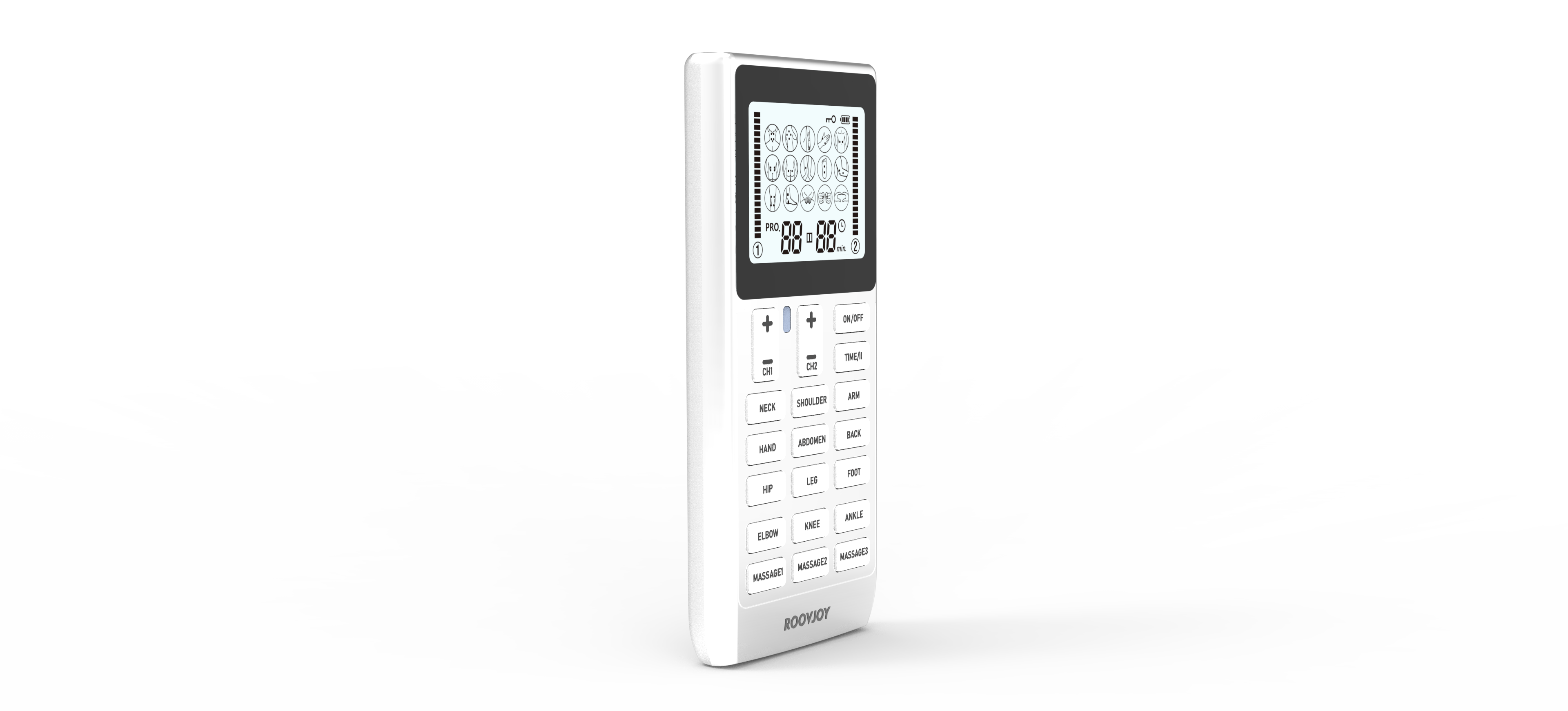

Intuitive LCD Display and Buttons
The device features an LCD display that provides clear information. It shows key details such as the key locking symbol, pause symbol, treatment time, body part symbol, intensity levels for each of the 4 channels, program number, and battery symbol. The intuitive layout of the display and the corresponding buttons make it easy for users to understand and control the device. The buttons are designed for functions like adjusting treatment channels, selecting programs, and modifying intensity and time settings.
Adjustable Settings
Users have the flexibility to adjust various settings. The treatment time can be set from 10 to 90 minutes, and the output intensity can be increased or decreased using the dedicated buttons. The device also has a pause function, allowing users to take a break during treatment if needed. Additionally, it features an automatic shut - off after 1 minute of inactivity, which helps conserve battery life and ensures safety. The adjustable pulse width (30us - 260us) and pulse rate (2Hz - 120Hz) further contribute to personalized treatment.
Battery and Charging

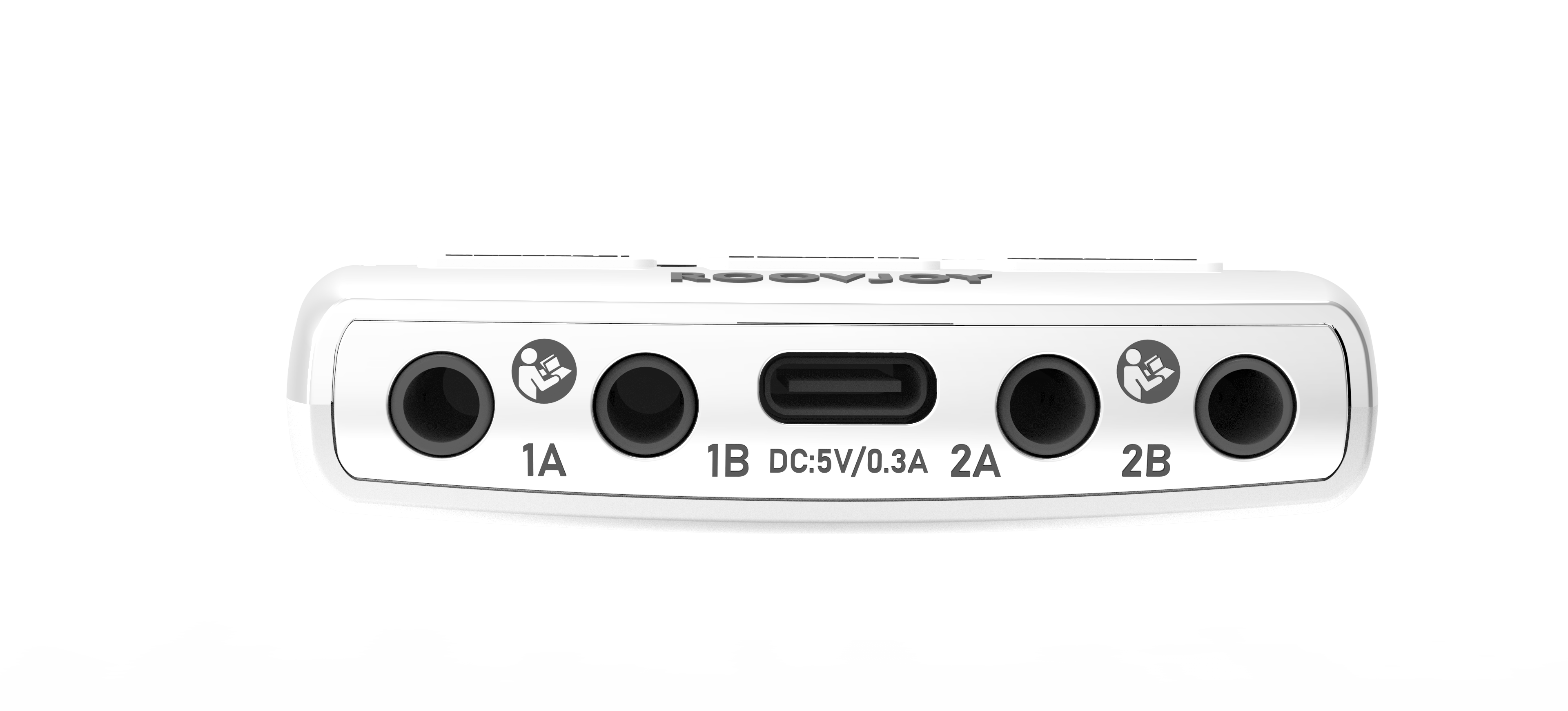

Powered by a 3.7V Li - ion battery, the M101A - WH2 is portable and can be used without being tethered to a power source. The battery has a clear indication on the LCD display, so users can easily monitor the power level. The device can be charged using the provided USB cable. When charging, the indicator light turns yellow, and it turns green when fully charged. It takes up to 2 hours to reach a full charge, and the device cannot be used during charging to ensure safety.
In conclusion, the M101A - WH2 is a feature - rich combo electrotherapy device. Its combination of 4 - channel output, diverse programs, adjustable settings, and convenient battery and charging options make it an ideal choice for those seeking effective and personalized electrotherapy treatment. Whether for home use or in a professional setting, this device offers a reliable solution for pain management and muscle rehabilitation.
